iCircuit
No in-app products collected for this app.
| Rating | Price | |||
|---|---|---|---|---|
| United States | 30%134 | 3.81 | $12.99 | |
| Germany | 12%52 | 3.58 | €14.99 $17.37 | |
| China | 6%26 | 3.96 | CN¥88.00 $13.04 | |
| Canada | 5%21 | 3.86 | CA$17.99 $12.94 | |
| United Kingdom | 4%16 | 4.25 | £12.99 $17.60 | |
| Japan | 3%14 | 4.21 | ¥2,000 $12.55 | |
| South Korea | 3%13 | 3.77 | ₩22,000 $15.55 | |
| Spain | 2%9 | 3.56 | €14.99 $17.37 | |
| France | 2%9 | 4.11 | €14.99 $17.37 | |
| Italy | 2%9 | 3.44 | €14.99 $17.37 | |
| Australia | 2%8 | 3.25 | A$19.99 $14.18 | |
| Poland | 2%8 | 4.00 | PLN 59.99 $16.13 | |
| Taiwan | 2%8 | 4.88 | NT$390.00 $12.25 | |
| Mexico | 2%7 | 4.00 | MX$299.00 $17.56 | |
| Austria | 1%6 | 4.83 | €14.99 $17.37 | |
| Switzerland | 1%6 | 4.50 | CHF 10.00 $12.35 | |
| Netherlands | 1%6 | 3.83 | €14.99 $17.37 | |
| Saudi Arabia | 1%6 | 5.00 | SAR 59.99 $16.00 | |
| Ukraine | 1%6 | 3.50 | $14.99 | |
| Russia | 1%5 | 2.80 | RUB 999.00 $11.77 |
Description
iCircuit is the premier iPhone and iPad app for designing, simulating, and learning analog and digital electronics. Its advanced simulation engine provides real-time, always-on analysis so your circuits stay powered and live, just like working with real components.
Use it like a CAD tool: add components, wire them up, and set their properties. But iCircuit is unlike typical CAD apps because it is always simulating. You do not stop to take a measurement or spend time configuring reports. Instead, you just play with the circuit as you normally would, with the power on.
Build circuits with over 300 components, from simple resistors and LEDs to programmable Arduinos (Uno, Nano, Mega, ESP8266, ESP32), PIC microcontrollers, and 60 4000/7400-series digital ICs (more available with Pro). Connect elements, adjust values, and instantly see the results.
BUILT-IN TEST EQUIPMENT

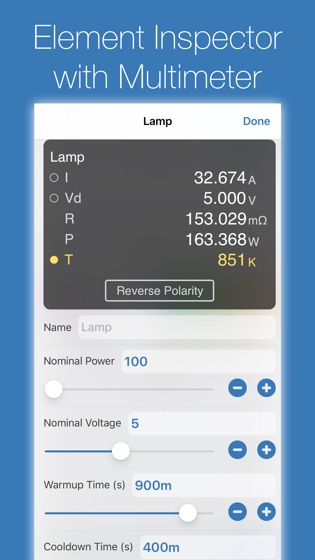

Multimeter: Probe any point to read voltage, current, and power
Oscilloscope: Track multiple signals with touch-controlled time scale, stacked/unstacked views, FFT analysis, and Bode plots
Gauges: Visualize voltages, currents, and frequencies directly in your circuit
Signal generators and configurable sources
EXTENSIVE COMPONENT LIBRARY

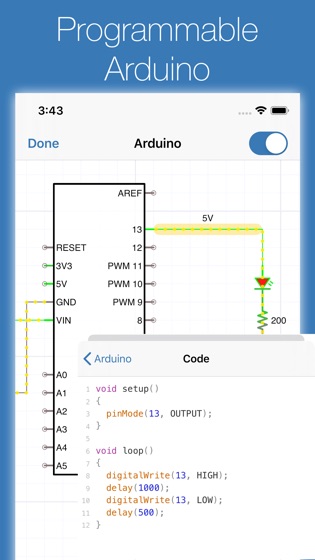

Programmable Arduinos (Uno, Nano, Mega, ESP8266, ESP32)
Programmable PIC microcontrollers (assembly and HEX files, more available with Pro)
Power: Voltage regulators (78xx, LM317), sources, dependent sources, power jacks, and simulated antennas
Analog: Resistors, capacitors, inductors, diodes, BJTs, MOSFETs, thermistors, triodes, and tetrodes
Digital: Logic gates (AND, OR, NAND, NOR, XOR), JK and D flip-flops, and 60 4000/7400-series ICs (180+ available with Pro)
ADCs and DACs
Sensors and displays: LEDs, 7-segment, NeoPixels, matrix displays, thermistors
Electromechanical: Motors, servos, SPST/SPDT and DPST/DPDT switches, push buttons, relays, and speakers
CREATE CUSTOM ELEMENTS
Build sub-circuits and custom elements to componentize your designs and create reusable modules. Share your custom elements with others via the iCircuit Gallery.
AUDIO SIMULATION
Hear your circuits. Speakers, buzzers, and microphones produce real audio output.
Perfect for students learning electronics, hobbyists prototyping projects, and engineers validating designs, all without burning out a single component.
ABOUT ICIRCUIT PRO (OPTIONAL)
iCircuit is a complete app with a one-time purchase. iCircuit Pro is optional and adds extra components (including more PICs and a larger 4000/7400 IC library) and helps fund ongoing development. Pro is not required for core simulation or everyday circuit design.
