Description
SignalScope X offers a range of powerful measurement and analysis tools to enhance your productivity in areas such as acoustics (sound and vibration), audio, electronics, and electroacoustics.
SignalScope X includes a free oscilloscope tool. SignalScope X makes additional tools available via 3 tiers of subscription-based tool sets to meet your basic, advanced, and professional needs. Each subscription works on your iPhone, iPad, and Mac.
Features:
Analyze signals coming from the Mac or iOS device’s current audio input device.
Assign engineering units to your input signals and calibrate external transducers for accurate measurements.
Assign input channel units and sensitivities for individual USB Audio devices.
Connect lab-grade microphones and sensors to your Mac, iPad, or iPhone with suitable interface hardware for precise measurements.
SignalScope offers enhanced support for select hardware from Digiducer, The Modal Shop, and miniDSP.
Nominal acoustic sensitivities included for iPhone and iPad built-in microphones, voltage sensitivities for headset input (including the standard Lightning-to-headset adapter).
Manually switch between available audio input and output sources.
Load microphone frequency response data (FRD) and apply frequency response correction (FRC) to FFT-based measurements.
Manually adjust audio sample rates, even up to 768 kHz, depending on hardware.
Save acquired measurement data to CSV, TXT (tab-delimited), or MAT files.
Save high-resolution analyzer display images to PDF files.
Retrieve your data files from your device via Files (iCloud Drive), iTunes File Sharing, or through a web browser on another device. Files may also be opened in other compatible apps (e.g. Mail, Notes, Numbers, Dropbox, etc).

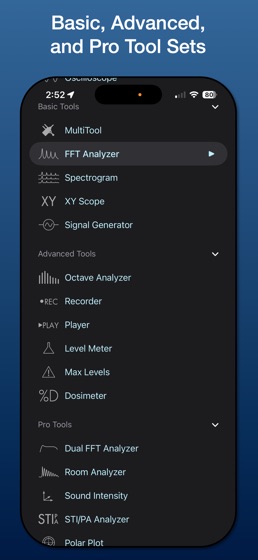

Basic Tools:
Oscilloscope
MultiTool - Powerful data monitoring and project management (Add 2-6 subtools, depending on screen size, and save configurations for easy recall at a later time.)
FFT Analyzer - Spectrum analyzer with user-settable frequency limits and input triggering
2D Real-time Spectrogram Analyzer
XY Plotter - Create Lissajous curves or visualize your stereo mix
Stereo Signal Generator
Advanced Tools: (Advanced Tool Set also includes basic tools)
3D Real-time Spectrogram Analyzer - Stunning live visualization of incoming data
Octave-band Analyzer - Whole and 1/3-octave RTA
Level Meter - Overall signal level meter
Max Levels - Traffic-light-style monitoring
Noise Dosimeter
Data Recorder - Stream up to 8 channels to WAV, AIF, or CAF audio files
Multi-channel Audio File Player - Analyze pre-recorded data
Pro Tools: (Pro Tool Set subscription includes all tools)
Dual-channel System Analyzer (Dual FFT analysis with support for Frequency Response Magnitude/Phase, Phase Delay, Group Delay, Coherence, Impulse Response and Cross-Correlation)
Sound Intensity Analyzer - With a suitable p-p probe, measure sound intensity and acoustic particle velocity spectra (narrowband and whole or 1/3-octave bands) and time waveforms.

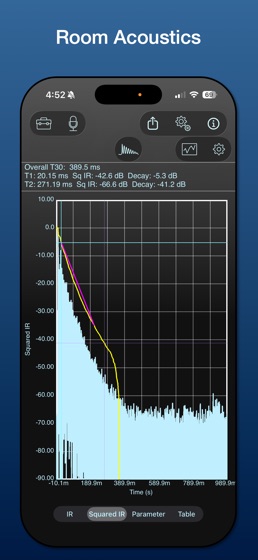

Room Acoustics Analyzer (T20, T30, T60, nonlinearity, EDT, Early Decay Time, Center Time, Clarity, and Definition in various frequency bands, adjustable Schroeder integration limits)
Polar Plot - Generate beautiful high-resolution plots of polar data.
STI/PA Analyzer - Direct STI and STIPA measurements
Additional Pro Features:
User-defined custom metadata in saved audio and data files
Data logging support in the Level Meter, Octave Analyzer, and Noise Dosimeter
Percentile exceeded sound levels in the Level Meter and Octave Analyzer
NC, RNC, and NR references curves, NC, SIL, and NR values in the Octave Analyzer
Voltage decibel levels can be displayed in dBV or dBu
