Voltage Drop Calculator.
Wire Size, NEC & IEC Tools
| Revenue % | ||||
|---|---|---|---|---|
| One-time purchase | 175 | $4.68 – $8.03 |
| Revenue % | Top products | |
|---|---|---|
| United States | ||
| Mexico | ||
| Chile | ||
| Brazil | ||
| Canada | ||
| Germany | ||
| Colombia | ||
| Spain | ||
| Australia | ||
| Thailand | ||
| Taiwan | ||
| Italy | ||
| China | ||
| Costa Rica | ||
| France | ||
| Saudi Arabia |
Description
Perform accurate Voltage Drop and Wire Sizing calculations for both NEC® (National Electrical Code) and IEC standards. Built for electricians, engineers, and contractors who need reliable results on the go.

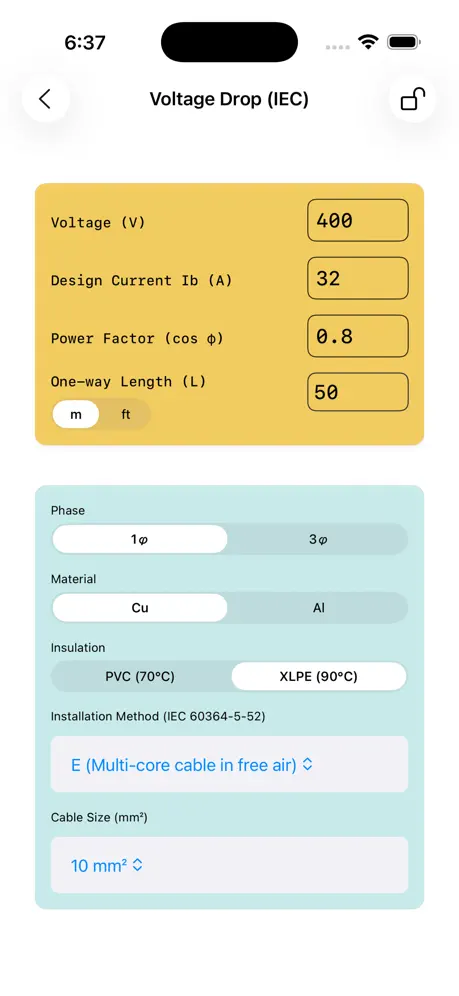

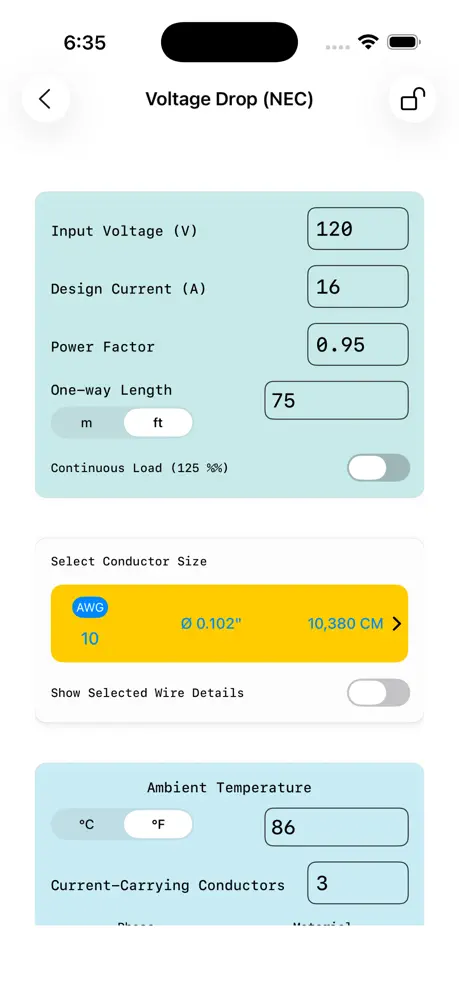

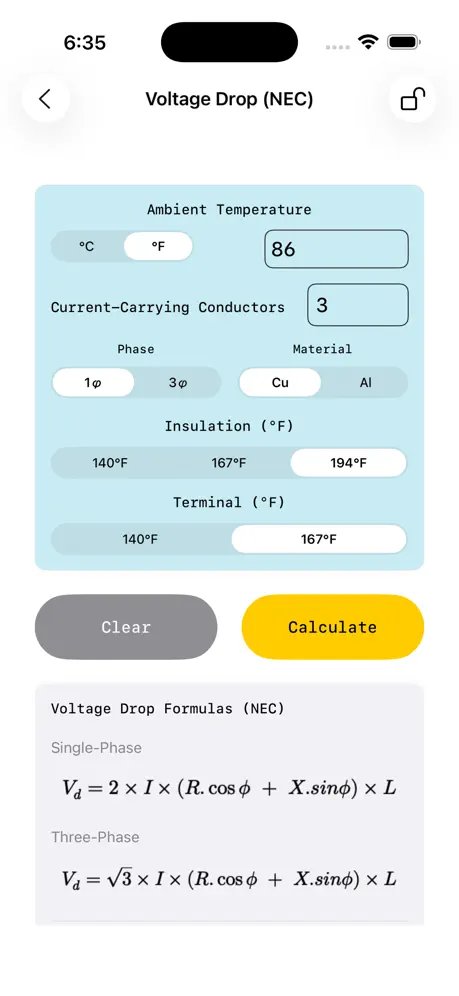

Voltage Drop Calculator
Dual standards: Switch between NEC (AWG/Imperial) and IEC (mm²/Metric)
Enter voltage, current, run length, and power factor
Supports continuous load (125%), grouping, and ambient temperature corrections
Copper or Aluminum conductors for single-phase and three-phase systems

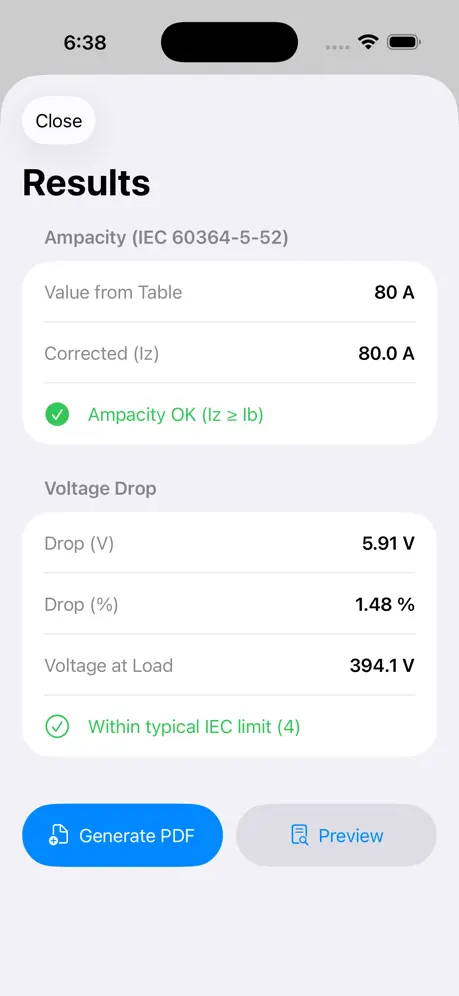

Detailed results including ampacity, derating, voltage drop, and load voltage
Automatic compliance checks (e.g., ≤ 3% for branch circuits)

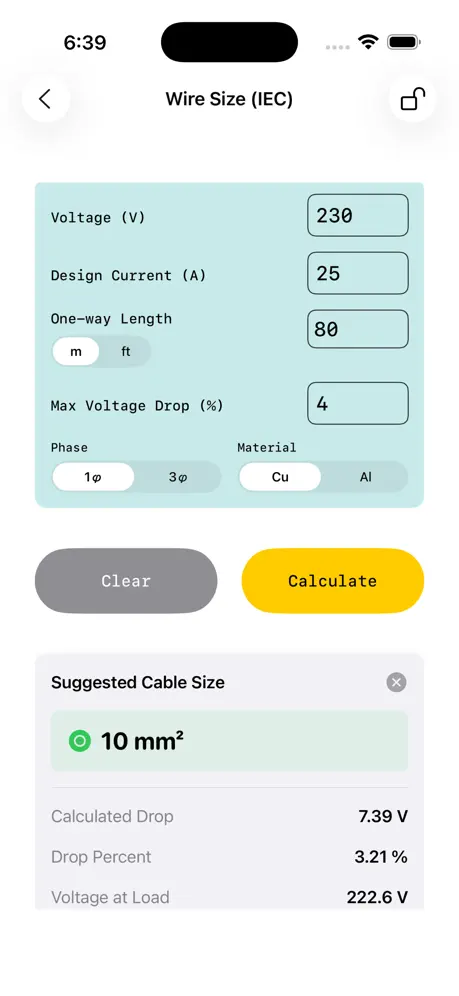

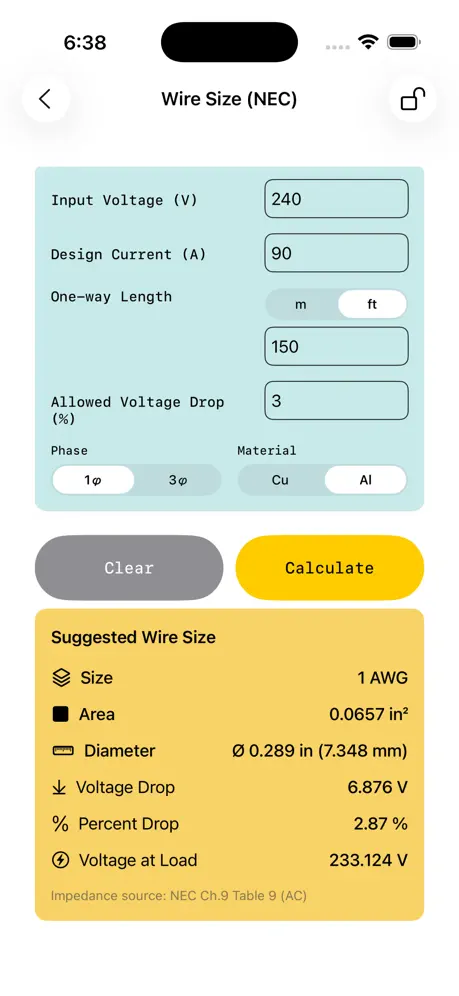

Wire Size Calculator (Reverse)
Calculates required wire size for a target voltage drop %
Suggests optimal AWG, kcmil, or mm²
Uses NEC Chapter 9, Table 9 (AC impedance) with DC fallback
Professional Tools

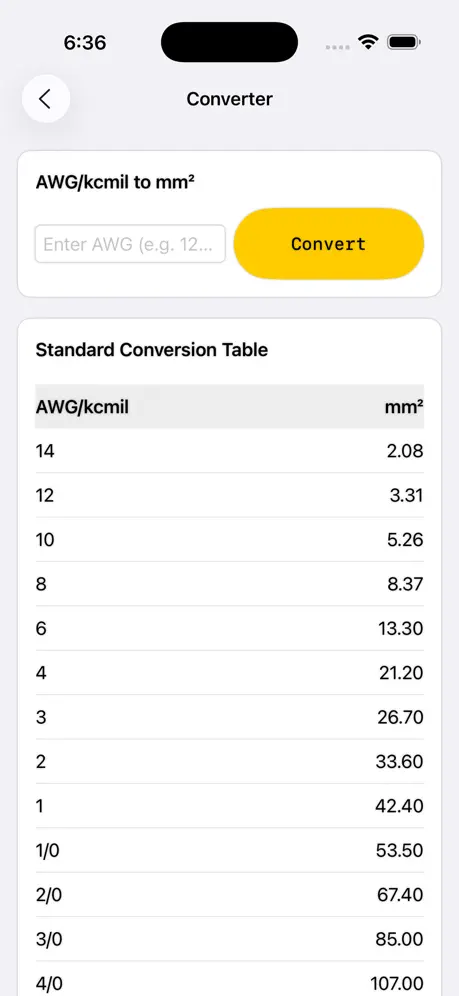

Wire converter (AWG/kcmil ↔ mm²)

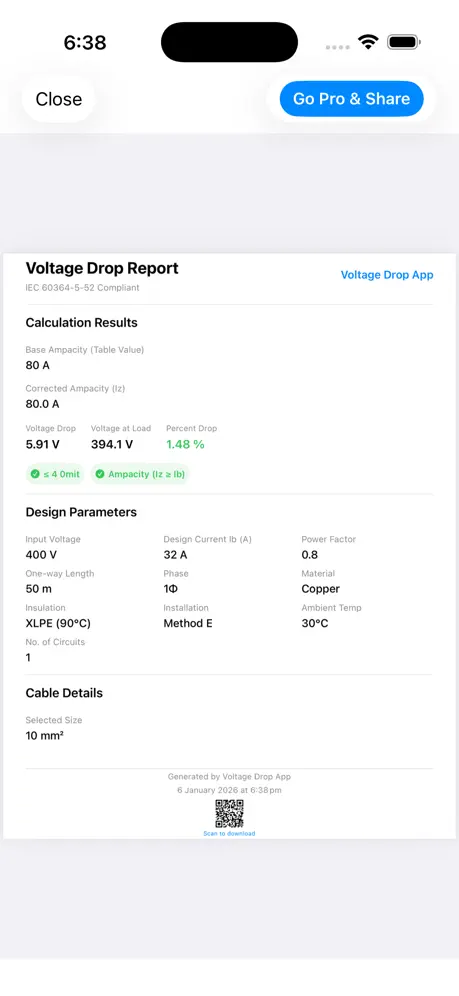

Generate and share PDF reports
Handy electrical formula cards
Localized in English, Spanish, French, German, Italian, Dutch, Portuguese, and Chinese
